詳細情報 |
|||
| タイヤ番号: | 4 | 貨物タンクの長さ: | 1420*800*1060mm |
|---|---|---|---|
| 前進シフト番号: | 3 | 完全な仕様: | 1408*740*965mm |
| 電源: | 電気 | 重さ: | 175kg（裸のコンピューター）/210kg（梱包後） |
| 負荷を負担します: | 300kg | ||
| ハイライト: | 4 Tire mini dumper electric,Effort Saving mini dumper electric,Effort Saving electric mini dump truck |
||
製品の説明

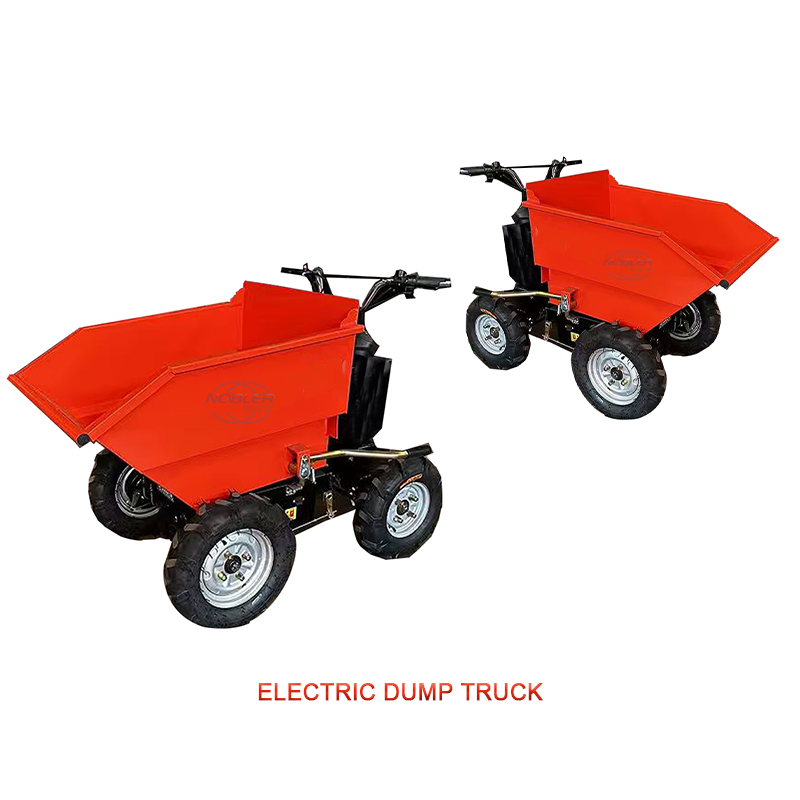

This electric dump truck is a versatile and efficient mini truck dumper designed for various material handling needs. Powered by electricity, it offers environmentally friendly operation with smooth and quiet performance. Ideal for construction sites, farms, and small-scale logistics operations.
The wheel dumper features four-speed adjustable functions, allowing operators to select optimal speeds based on load and working conditions. The user-friendly design includes a foot pedal for convenient, labor-saving operation.
With a truck bed inner diameter of 61 centimeters, this mini truck dumper provides ample space for transporting materials like sand, gravel, or agricultural produce. The manual dumping function enables quick material discharge for improved efficiency.
Combining the benefits of a mini truck dumper and wheel dumper, this electric model features adjustable speed gears, convenient standing operation, and practical manual dumping - making it an ideal solution for reliable material handling.
| Brand | NOBLER |
|---|---|
| Model | NBE001 |
| Rated Load Capacity | 300kg |
| Overall Dimensions | 1408*740*965 |
| Turning Radius | 1.5m |
| Dead Weight | 170kg |
| Hopper Capacity | 0.23m³ |
| Endurance Capacity | 4h |
| Charging Time | 5-6h |
| Charging Voltage | 220V/50Hz |
| Climbing Angle | 15° |
| Battery Manufacturer | TIANENG Graphene |
| Battery Model | 48V20ah |
| Motor Power | 700W |
| Tire Model (Front) | 4.00-10 |
| Tire Model (Rear) | 4.00-8 |
| Tire Pressure | 0.25mpa |
| Forward Speed (High) | 15km/h |
| Forward Speed (Medium) | 12km/h |
| Forward Speed (Low) | 9km/h |
| Reverse Speed | 6km/h |
| Walking Mode | Self-propelled traver |
| Tipping Method | Manual lifting |
| Starting Mode | Electrical starting |
Qingdao Nobler Special Vehicles Co., Ltd., established in 2015, is a modern machinery manufacturing enterprise specializing in R&D, production, and sales. The company produces flower trolleys, electric dump trucks, cargo turnover cars, and various sheet metal products, with customization options available.
The 20,000+ square meter factory features advanced production lines including CNC stamping and welding robots, with an annual production capacity exceeding 200,000 units. Certified with IS09001 in 2021 and recognized as a national high-tech enterprise.
